Billet Scale and Performance 40mm Lift MAIN PLATES ONLY for CEN F450 (truck not included)

Billet Scale and Performance 40mm Lift MAIN PLATES ONLY for CEN F450 (truck not included)

Regular price $89.99 USD
Regular price $99.99 USD Sale price $89.99 USD
Sale Sold out

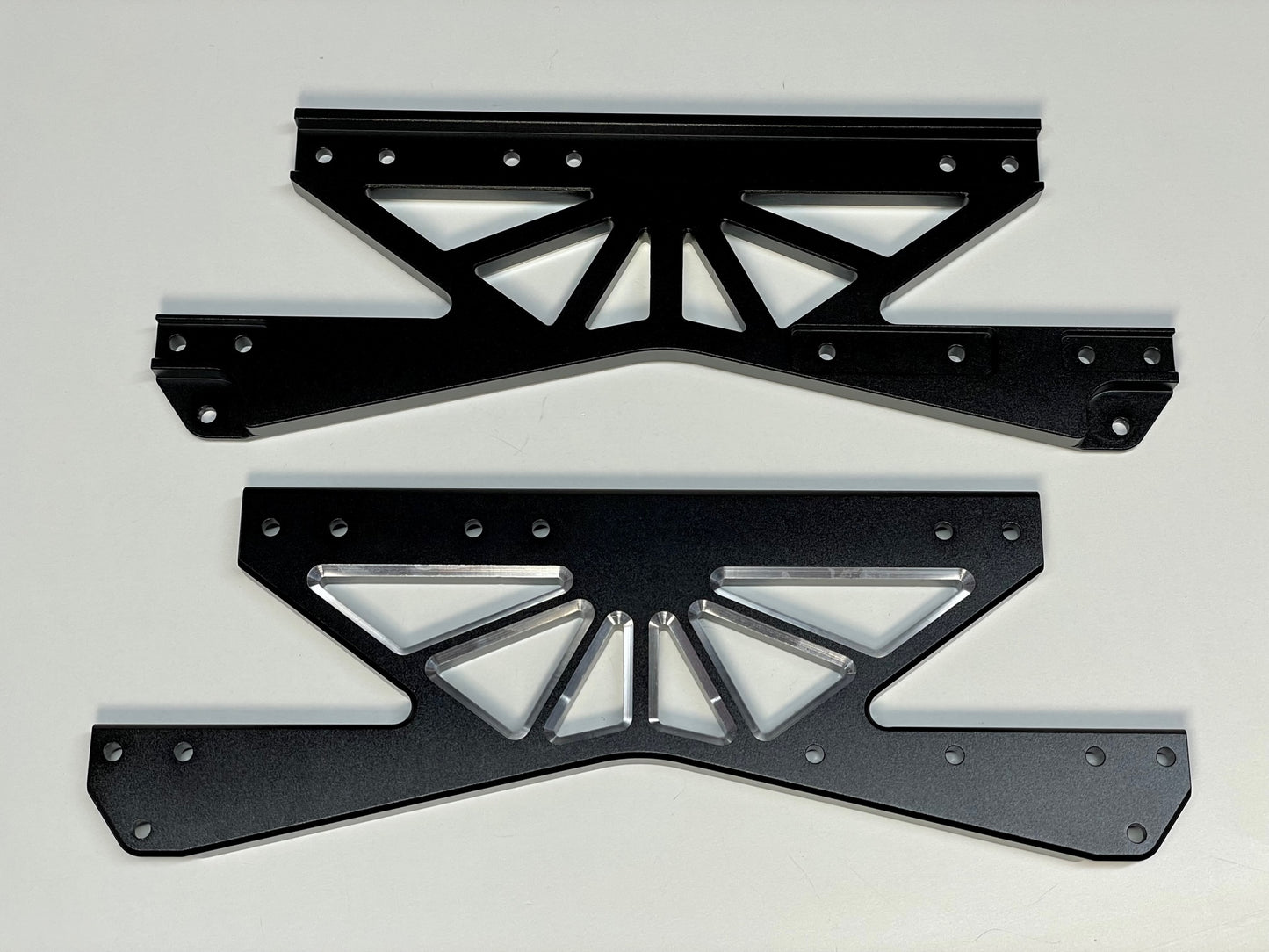

Left and Right Main Lift Plates onlyThis is not a complete kit.  This product is designed to allow you to upgrade from our Original 40mm Lift Kit(or any other brand of lift kit for the CEN F450).

Our brand new 2022 Billet Scale and Performance 40mm Lift Plates for the CEN Racing F450. After months and months of design revisions we've finally struck a balance between Scale looks and off road Performance(hence the name).   Machined from billet aluminum, and anodized satin black with bright silver contrast cut chamfers in the "basket" area, these plates were 100% inspired by the show trucks we've studied in person.  We wanted to maintain the stock link lengths and cross members while reducing their visual impact, not an easy task.  This is where the high clearance contrast chamfered center basket comes in.  The chamfering draws the eye to the middle of the truck and mimics the fabricated and machined "transmission baskets" you'll find on many of the trucks you'd find at SEMA or the Truckin' Nationals.



2 billet(machined from a solid piece of aluminum) black anodized main chassis lift plates w/high break over design and captured lower link ends.  This design maximizes clearance while keeping the truck from getting hung up as it would with link tabs that stick out below the truck.  The slight center arch helps maintain ground clearance and reduces the chances of high centering.


No hardware included.  M3 bolts recommend when upgrading from other brands of lift kits.

No Steering Brackets, no Panhard Brackets.


Recommended for stock 80mm (American Force Version) or 90mm (KG1 Edition) shocks mounted directly to the chassis.  120 or 130mm can also be used mounted in the stock locations.

100mm, 110mm shocks not recommended.
